Polonium Radiohalos: Still "A Very Tiny Mystery"

Download PDFDownload Polonium Radiohalos: Still "A Very Tiny Mystery" PDF

It is now almost two decades since the then Assistant Chief Geologist of the US Geological Survey, Dr. G. Brent Dalrymple, described polonium radiohalos as "a very tiny mystery."1 An expert geochronologist, Dalrymple was being cross-examined in the Federal District Court in Little Rock at the Arkansas "creation trial" of December 1981.

Radiohalos (or radioactive halos) are minute spherical zones of color or darkening surrounding tiny mineral crystals, all included in larger grains or crystals of host minerals in certain rocks. Alpha-particles produced by radioactive decay of U, Th, and their decay products in the tiny mineral inclusions penetrate the surrounding host minerals, damaging their crystal lattices and discoloring them. The distances traveled by the a-particles are related to their energies, and where the a-particles stop they do the most damage, leaving spherical shells of intense discoloration. Because the a-particles emitted by the radionuclides in the U and Th decay chains have different energies, it is therefore possible to identify which radionuclides were responsible for producing the radiohalos. The minerals containing these radiohalos are usually studied in thin sections, so the radiohalos are viewed in cross-sections and thus exhibit ring structures.

Radiohalos produced by the 238U and 232Th decay chains are thus easily explained. However, there are also radiohalos found that only exhibit rings produced by the three Po (polonium) radionuclides of the 238U decay chain (Figure 1), and it is these Po radiohalos that are enigmatic.3 Examination of the tiny central mineral inclusions (or radiocenters) in these Po radiohalos reveals that only the respective Po radionuclides were present at the time the Po radiohalos formed, but their half-lives are very short—218Po (3.1 minutes), 214Po (164 micro-seconds) and 210Po (138 days). After 10 half-lives of decay the original quantities of radionuclides are essentially exhausted, so these Po radiohalos rings would seem to have formed very quickly, in approximately 31 minutes (218Po), 1.64 milli-seconds (214Po) and 1,380 days (210Po).

Now these Po radiohalos have been found primarily in the mineral biotite, a mica—at 20 out of 22 reported localities.4 The rocks hosting these Po-radiohalo-bearing biotites at 17 of the 20 localities are probably granites or granitic pegmatites. According to conventional uniformitarian geology, such granitic rocks formed over millions of years by cooling from hot magmas intruded into the upper levels of the earth's crust.5 However, the radiohalos could only have formed after the biotites had crystallized around the tiny Po-bearing inclusions and cooled. Thus, assuming the Po was in the tiny inclusions when they first crystallized, it can be concluded that the biotites, and therefore the granites, had to crystallize and cool in less time than it would have taken for the Po radiohalo rings to form6—1.64 milli-seconds for the 214Po radiohalo rings! If this implies that these granitic rocks were instantly created, then it is no wonder that the conventional geologist Dalrymple relegated Po radiohalos to being "a very tiny mystery"!

Of course, such incredible implications have not gone unopposed. Some observers have claimed that many Po radiohalos occur along cracks and cleavage planes in biotites, and that fluids may therefore have transported the Po into the biotites after the granitic rocks had formed.7 In a relatively few instances this is obviously true, but only 210Po radiohalos are found along such cracks, which are sometimes also bordered by discoloration with a width equivalent to the ring diameter of 210Po. This implies that only the longer-lived 210Po was transported in the fluids. Secondary 210Po radiohalos have also been found in coalified wood associated with sandstone-hosted U orebodies formed by groundwater flow.8 The Po was concentrated from the U-transporting fluids into the Se-rich radiocenters because of the geochemical affinity of Po with Se.

Critics also point to the apparent association between the occurrence of Po radiohalos and concentrations of U—16 out of 20 Po-radiohalo-bearing biotite localities have reported U in the rock or in an orebody.9 Thus it has been suggested that the fluids responsible for concentrating the U may have also transported the Po and concentrated it in the tiny radiocenters. 210Po is present in groundwaters,10 and in volcanic gases11 and fluids,12 and has been reported in submarine hydrothermal vent fluids and chimney deposits on the East Pacific Rise,13 where the 210Po appears to have been transported over distances of up to several kilometers in 20-30 days.

However, if Po radiohalos formed secondarily from fluid-transported U-decay products, the expected amounts of the 218Po, 214Po and 210Po radiohalos would be directly proportional to their different half-lives.14 Thus, for example, there should be 67,000 210Po radiohalos for each 218Po radiohalo. Yet in a Norwegian biotite there are more than 1,000 210Po radiohalos, 90 218Po radiohalos and only one 214Po radiohalo,15 but in other biotites the abundance ratios are 218Po>210Po>214 Po, and even 214Po>218Po or 210Po.16 Also, there may be as many as 20,000-30,000 218Po and 210Po radiohalos per cubic centimeter,17 or 5,000-10,000 218Po and 214Po radiohalos per cubic centimeter.18 The seeming impossibility of this secondary transport explanation is highlighted by the fact that the 5 x 109 atoms of 218Po initially needed to produce each very dark 218Po radiohalo had to be concentrated in the tiny radiocenters in less than the 218Po's three minute half-life.19 But experimentally-measured diffusion rates are just too slow,20 and close to radiocenters there is no large excess of a-recoil tracks left by decay of the fluid-transported Po and Po-precursors.21

Another puzzle is that at five of the 20 Po-radiohalo-bearing biotite localities the host granitic rocks intrude apparently older rocks arguably produced during the Flood.22 If these granitic rocks therefore also formed during the Flood, then how were the Po radiohalos produced in them? On the other hand, most of the Po radiohalos occur in Precambrian granitic rocks, many of which might be related to the events of the Creation Week, as might the one occurrence of Po radiohalos in a Precambrian high-grade metamorphic rock.

Thus the Po radiohalos still remain "a very tiny mystery." There can be no doubt, though, that they are significant as clues for unraveling earth history within the Biblical framework, so further research is warranted. If the Po radiohalos are indeed "fingerprints of creation," 23 then they provide the means of identifying Creation Week rocks. Similarly, they may indicate accelerated radioactive decay in the past and/or suspension of normal geological processes and process rates, including fluid transport, during the Flood. Whatever these Po radiohalos are "telling us," we are only going to find out by further "reading the rocks" to seek a better understanding of the geological distribution and occurrences of these Po radiohalos at both known and new localities. Such research is now being pursued.24

Radio Halo

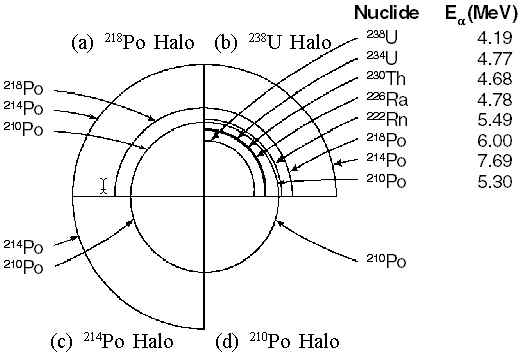

Figure 1. Composite schematic drawing of (a) a 218Po halo, (b) a 238U halo, (c) a 214Po halo and (d) a 210Po halo with radii proportional to the ranges of a-particles in air. The nuclides responsible for the a-particles and their energies are listed for the different halo rings [after Gentry2].



Radio Halo Photo
Figure 2. 218Po radiohalo. Photo by Mark Armitage.

References

1 Gentry, R.V., Creation's Tiny Mystery (Knoxville, TN: Earth Science Associates, 1988), p.122.
2 Gentry, R.V., "Radioactive Halos," Annual Review of Nuclear Science 23 (1973):
347-362. R.V. Gentry, "Radiohalos in a Radiochronological and Cosmological Perspective," Science 184 (1974): 62-66.
3 Gentry, Ref.2. R.V. Gentry, "Radioactive Halos in a Radiochronological and Cosmological Perspective," Proceedings of the 63rd Annual Meeting, Pacific Division, American Association for the Advancement of Science 1, no. 3 (1984): 38-65.
4 Wise, K.P., "Radioactive Halos: Geological Concerns," Creation Research Society Quarterly 25 (1989): 171-176.
5 Snelling, A.A., and J. Woodmorappe, "The Cooling of Thick Igneous Bodies on a Young Earth," in Proceedings of the Fourth International Conference on Creationism, edited by R.E. Walsh (Pittsburgh, PA: Creation Science Fellowship, 1998), pp.527-545, however, have demonstrated that only tens to a few thousands of years are necessary for the intrusion and cooling of granitic rocks.
6 Gentry, R.V., "Radioactive Halos: Implications for Creation," in Proceedings of the First International Conference on Creationism, vol. 2, edited by R.E. Walsh, C.L. Brooks, and R.S. Crowell (Pittsburgh, PA: Creation Science Fellowship, 1986), pp.89-100. Gentry, Ref.1.
7 Henderson, G.H., and F.W. Sparks, "A Quantitative Study of Pleochroic Haloes—IV. New Types of Haloes," Proceedings of the Royal Society of London, Series A, 173 (1939): 238-239. H. Meier and W. Hecker, "Radioactive Halos as Possible Indicators for Geochemical Processes in Magmatites," Geochemical Journal 10 (1976): 185-195.
8 Gentry, R.V., W.H. Christie, D.H. Smith, J.F. Emery, S.A. Reynolds, R. Walker, S.S. Christy, and P.A. Gentry, "Radiohalos in Coalified Wood: New Evidence Relating to the Time of Uranium Introduction and Coalification," Science 194(1976): 315-318.
9 Wise, Ref.4.
10 Harada, K., W.C. Burnett, P.A. LaRock, and J.B. Cowart, "Polonium in Florida Groundwater and its Possible Relationship to the Sulfur Cycle and Bacteria," Geochimica et Cosmochimica Acta 53 (1989): 143-150.
11 Kuroda, P.K., J.C.H. Liou, A.D. Banavali, J.D. Akridge, and L.A. Burchfield, "Polonium-210 Fallout from the 1980 Eruption of Mount St Helens and the Mystery Cloud of 1982," Geochemical Journal 18 (1984): 55-60.
12 LeCloarec, M.F., M. Pennisi, E. Corazza, and G. Lambert, "Origin of Fumarolic Fluids Emitted from a Nonerupting Volcano: Radionuclide Constraints at Vulcano (Aeolian Islands, Italy)," Geochimica et Cosmochimica Acta 58 (1994): 4401-4410.
13 Hussain, N., and T.M. Church, "210Po and 210Pb Disequilibrium in the Hydrothermal Vent Fluids and Chimney Deposits from Juan de Fuca Ridge," Geophysical Research Letters 22 (1995): 3175-3178.
14 Gentry, R.V., "Radiohalos in Diamonds," Creation Ex Nihilo Technical Journal 12 (1998): 287-290.
15 Meier and Hecker, Ref.7.
16 Feather, N., "The Unsolved Problem of the Po-Haloes in Precambrian Biotite and Other Old Minerals," Communications to the Royal Society of Edinburgh 11 (1978): 147-158.
17 Gentry, R.V., "Fossil Alpha-Recoil Analysis of Certain Variant Radioactive Halos," Science 160 (1968): 1228-1230.
18 Gentry, R.V., "Spectacle Haloes," Nature 258 (1975): 269-270.
19 Gentry, Ref.2.
20 Gentry, Ref.18. S.R. Hashemi-Nezhad, J.H. Fremlin, and S.A. Durrani, "Polonium Haloes in Mica," Nature 278 (1979): 333-335.
21 Gentry, Refs.17, 18.
22 Wise, Ref.4.
23 Fingerprints of Creation (Thousand Oaks, CA: Adventist Media Center, 1993), videocassette.
24 Vardiman, L., "RATE Group Prepares Status Report" (El Cajon, CA: Institute for Creation Research Impact No. 314, 1999), pp. i-iv.
* Dr. Snelling is Professor of Geology for the ICR Graduate School.

Cite this article: Andrew A. Snelling, Ph.D. 2000. Polonium Radiohalos: Still "A Very Tiny Mystery". Acts & Facts. 29 (8).
